c.1930 Martin O-17 Guitar
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEhCujnJmedSUb-Y6aguJk0ZmGKgXlvvWSBsFT1HIoyQMgSMAryc3sOJjR_pjghl6xfWlAD542rz9WWdSCFexN1A5c_EZgfAUJoHvQzwxCyw_RlkeFXf-hiYSx8Mk11bESjw_qLAVxVViMo/s400/martin0001.jpg)
I've been slowly but steadily getting this guitar back into shape for a customer of mine. Serial number places this guitar at 1930 and it's a great example of Martin's "entry" level instruments... lightyears ahead of the competition's models in the same vein, and yet plain, unornamented, and seriously cool.
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEiH6T9RF_ng4O33uxXf1JoapOEY7OF4LoPKAKnmX1APMxzDOn5wA6IdQz1GwzMgzejxiEM8Gm3bZ2r2B7sBWiiInkwnkhEsrk3c0Sm0pzq-0BGNGkWh72tN5yCeDClClX-wJElY1ipuLKk/s400/martin0002.jpg)
Body is the familiar 0-size in the 12-fret-join variety, with body and neck made entirely from solid mahogany of a decent grade. Fretboard on this guitar is a replacement and is rosewood. The bridge is a new replacement and is ebony. While the original nut was probably ebony, the one that's on it is quite old and bone. Per the customer's request I took out and filled in some poorly-inlaid MOP dots and in their place installed regulation Martin-style pattern pearl dots.
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEg6Sfkd4zJ0KTwnskFQ3YWe8L2CtYd6d1mK0Rhq7VOykPBmvxsksXXLQDw9em3jCxh2u8RSa8N3osHx-BbWIhdr_SqzBMuP6wG_r6m2aYl3ZpsmjhEqr5tA09ASuiZKq-4d1KCCZDW_wDA/s400/martin0003.jpg)

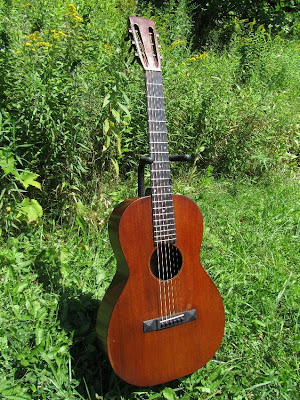

The only decorative touches to this instrument are the inlaid, very simple rosette, and a rosewood headstock veneer.
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEhCYzdDbw_WKQSm2mUK7V-rIsXvvmT3Kk7YsFYgUaChjgASE5R_1LfzozIdnWdh8R9hw4o7D9jD2BbccfnELOuuvW-wYFImhjYuJI9QYFq5XxCTbi7fxhKnblMU6IZR2SS4CZf-DnyFo3I/s400/martin0004.jpg)
Also per the customer's request, I "spruced up" the top and in general, the finish. When I received the guitar, it had electrical-tape "pickguards" on either side of the soundhole and the whole instrument had some sort of bizarre lacquer that was moisture-sensitive and getting gummy around the edges and neck. In addition it had a reverse-belly Gibson-style bridge installed which looked really bad.
I very lightly sanded and then polished up through a few layers of yucky old finish, and then sprayed a couple coats of lacquer on the top, back, sides, and headstock, followed with polishing, of course. The result is a much nicer looking instrument with approximately the correct thickness of finish on it. It's not perfect because the cruddy old job still shows here and there, but it is a zillion times better and the grain pops out in the sunlight now.
I very lightly sanded and then polished up through a few layers of yucky old finish, and then sprayed a couple coats of lacquer on the top, back, sides, and headstock, followed with polishing, of course. The result is a much nicer looking instrument with approximately the correct thickness of finish on it. It's not perfect because the cruddy old job still shows here and there, but it is a zillion times better and the grain pops out in the sunlight now.
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEiZcz4P3-9MdcO5C5X3WndBnKDJGY0h_a__7J9cbMQeBy90PLQFp_NiRJ-CHuuO6BlTkBRkdpVzYJBLw_8Sst2vUJX5AxzjTdLnoOMO4M9idSkfDtogBIZIOHYOa6foffjRK40_zLs_igg/s400/martin0005.jpg)
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEgvKgVwwwQCj_jzT9AN9MNmWRnqufR3-sCnD_UO10h0jhX-o0qrygzX66HeHnyf4390gO72jXWS_UAiT3GJZSf4hVI97nQ_4mdTKwaiyDFRL4pbjPBHtkC1bObD2-fQQ0wahh9FvzVpy0M/s400/martin0006.jpg)
Original brass-plate, bakelite-buttoned tuners.
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEiJalFxpBDdqHrHdjzONum3OnXsS8tqX3g1LCSw8HUMf-QyN9ZC-BGjNqq1UrAN51UqNxLp-NP9tfcuujm3e36D4EhzwaN_sxsHQR3XMJs87EErYwMO-HPUJ0Y4IoQJtoakyLKdyT8a6_o/s400/martin0007.jpg)

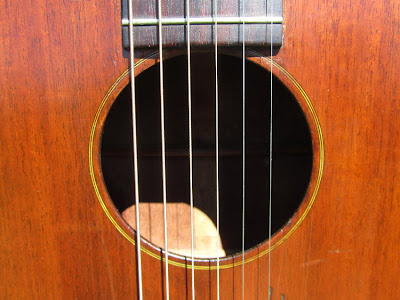

Nice, simply rosette.
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEiJW8fHQkLG6p5aqNOjt9mX5Iy_9ELJfgYgiJEZXU-EdsYXsSsx4IHA_CjsgV7OwuoOUReZqlvrAmgXAY3cyC9YVbcAAWGDVsNjQFkZQoJaGe0r4N4uj5siv2tYZQddBSSgIy_EMw4EQnM/s400/martin0008.jpg)

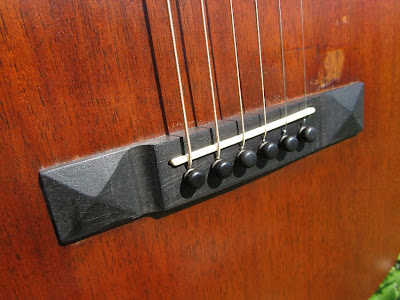

I reused the old synthetic saddle, but after installation of the new ebony pyramid bridge and some ebony bridge pins, this guitar is much louder, sweeter-toned, responsive, and in general... better.
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEiTTjFwmrYP6eKlWlMFYlDewzCK2JFfo5b4dtDnpfRbnQUDqW8rfIG3Nh9O5yJ6iHKIQ9naPZNuafuxGs1WdEzwuqDkDklxk9XPpbpjLiL9OWljX3Qjy6s71wJeacnsgGlVRljBwBKaRxw/s400/martin0009.jpg)

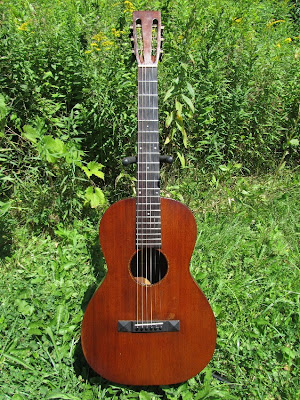

This guitar features typical Martin x-bracing, but the braces are super lightweight and nicely made -- a far cry from the 1970s-style bracing the company used later on.
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEgnzCMXH6y2URlYjEjOKeCMhFBQxYVRG1VEC7HRXKPrJhfEHZF__gWE7Sgnz-3O-NF58L1CZKcdrwXiCoYVMJZC3HndBBWSSHYRO3sCVx-UPOxXlsR0-eGy-bkX8rJ0OooHykLTA7E3PxY/s400/martin0010.jpg)
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEjOcAH8CojW8HDzkRsEwf-2H15RISUc9M_HHddGrdcrPZtsykmOj8l7JcicNpqnfWBABao9Bq2Jnn6B0QFCQJqhblmY4y9z6jgDm1Srd-5u-CBw67FOHzWZ4EJdciPObr3rt_iYLyObIuA/s400/martin0011.jpg)
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEjgjs67V10LSHMprioKzKSCKx-etoLvMWmmpYJj0BarkrK4XOT8uTI9Alk_KGTJ-aMLPnFIbhjirhrGwH9zEnMVjoW9KDBo6Ta7tFJ35WCsSmCuBYjWJ8wjrVDXVcPLljr3KPTnm-2sGyU/s400/martin0012.jpg)
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEjxO0ssdcPvsvIkc72n6fUnRU3pJHDtnC02Ew0TN2WMfnwhLkxfGgOkZgZ6rGRsvbGO2oqMJKiXajS2rKtqyeQizOmcUXiPEZJ_3Ag53FzVLRElPtmkinLBlrTtNkdpoi72iVi9FNX06Gc/s400/martin0013.jpg)
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEgBRIW3A2UcKajnKOZRsGPCNECstQUlFR5-6FJrMs8h16Q1D8MR_IRC-V_PDmAPmiglNZ2QqpDpC-fzOu_l1UADA_yAo3VyVSYkZCe1anbHiJUArXW3IanBI4aHgNbkOLWMH0f5YBCSars/s400/martin0014.jpg)

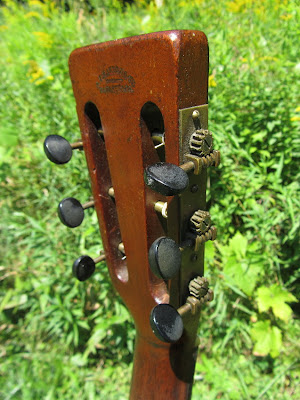

Oh, per the customer's request, I also sanded down the back of the neck to a very, very thinly finished point, and then polished it up a lot. This gives you protection for the wood but the feel of a "speed neck" -- not to mention, you'll never need to worry about your hand getting "stuck" on a hot summer day.
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEgUPUveTC0NIQ4KtFlyXi9nOBfbA7JtYNH_CnoGg68FwHKQHm0yIHjLTpDHqRE5Ltq22u5RvB7j3xCAdd7lb0OvKa90CBtA8RDWhI7l95jRpdYmPMX5OZlyLVF7MdY64F-eYYD-a226BSw/s400/martin0016.jpg)
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEgjhC1ruETCLKTKvPzO1oLRWj8CdYmjziV23_a7hz0lb5w4M-rOdNlyU0uS4WkQALoasQ-81dAWmr9R9bPOWYn7b6IGtoM89qIObzz_Rgct2s4Rq2pqSIMbUoVQDESP-9l-j1bP1R2n3m4/s400/martin0017.jpg)
The guitar is fitted with a K&K Pure Western pickup which sounds awesome. This had a poor old DiMarzio soundhole pickup in it when I received it. For amplified tone -- this is a huge improvement.
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEht3FV3_h8Vf1nlSRc58QccAWP5C3BYeLZ9LjHmqrlYaeCHHvuyd809ipM1eUlrpIz2qd6ynLDnZCQA6oAfULieU8Ou_qMye0gzBvRCBV45t69EEMxsvLBGjd-GEfCU0vTfcIUFizkbdaY/s400/martin0018.jpg)
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEgiSNHzLPD-iC0U8K9y6teY_VuU6sXvfNhMczP4DdxI_bT9fQsij14bdkqTNCTThBYnQ8ElZdguQpzw32fkROQGK1fVYETsbHjlMydKlxoq8XJed1OpqsSDuvzgTdITgS_2Uq56jW9opPM/s400/martin0020.jpg)
