2005 National Style N "Etched" Resonator Guitar



Update 2018: I originally worked on this for a customer in 2015, but he recently brought it in for consignment as he's moved-away from the resonator sound and into pedal steel. I've updated the blog post with a new description, new photos, and (soon) a new video clip.

I'm of the opinion that modern National Reso-Phonic products are way more suited to the average modern ears as their tonal sweep is wider than the old guys -- they have a much-expanded low-end and a little more carrying-power at the cost of a bit of high-end sparkle, chime, and snap. For fingerpickers or slide players, that means a much warmer-sounding guitar that's still loud and has bite, but doesn't get thin or zippy when dug-into. I think of the older ones as generally "airier and drier" and these as "meatier." NRP builds quality instruments with quality parts and, I think, the "new tone" has mostly to do with the fact that the bodies are thicker-gauge, heavier, and a little stiffer in construction.

When this was originally brought into me in 2015, its owner presented a guitar that was partially disassembled and had a broken seam on the lower-bout rear stretching across the flat-sided "butt" of the guitar. By then it'd also acquired plenty of the use-wear and handling-wear evident in the pictures, here. It's certainly a "player's" box.

Part of my work at the time included resoldering the broken seam as best as I could (I'm not a metal-shop) and I'm proud to say that the repaired jaggedy break along the seam has held-up 100% in use. After that was patched, I gave the frets a light level/dress job, compensated the saddle, and set it up for 56w-13 mediums per the owner's request. It's playing just as it left with a quick, easy feel and tons of power. The current setup is 3/32" EAD and a hair-under 3/32" GBE at the 12th fret. I can lower it to "on-the-dot" 1/16" for the DGBE if desired, but I like to leave Nat'ls a tiny-bit higher because the average resonator player that I've met pounds on these things and retunes half a dozen times to different slacker-tension open tunings that work better with either a hair more height at the saddle or more relief in the neck.

Specs-wise it's a pretty standard Style N with the "etched look -- it has a 25" scale with a 1 13/16" nut width. The board has a roughly-14" radius and the neck has a medium, soft-V rear profile. String spacing at the nut is 1 11/16" and it's 2 5/16" at the bridge. The lower bout is 14" across and it has 3" side depth. The neck is maple with an ebony fretboard and ivoroid binding.

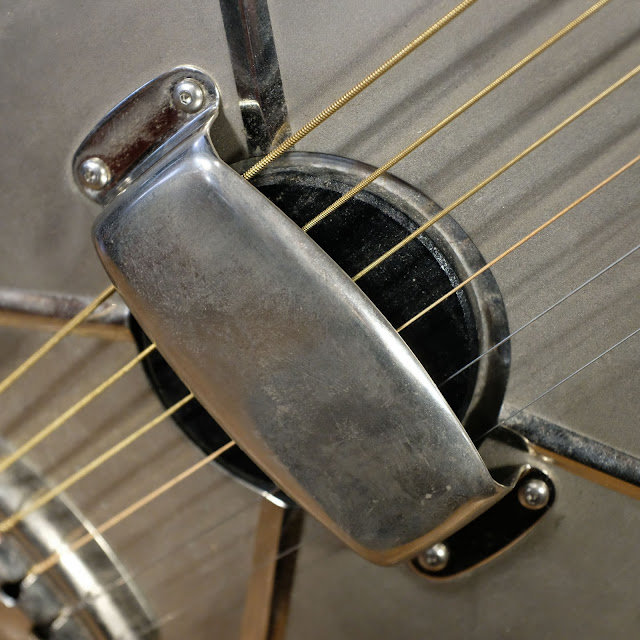

A much-appreciated innovation on new Nat'ls is the removable bridge-cover/wrist-rest. Four machine screws allow easy on/off which greatly, greatly reduces the time and hassle involved in setting one of these guitars up at the bridge.















Ok, here are detail shots of the repaired seam.
